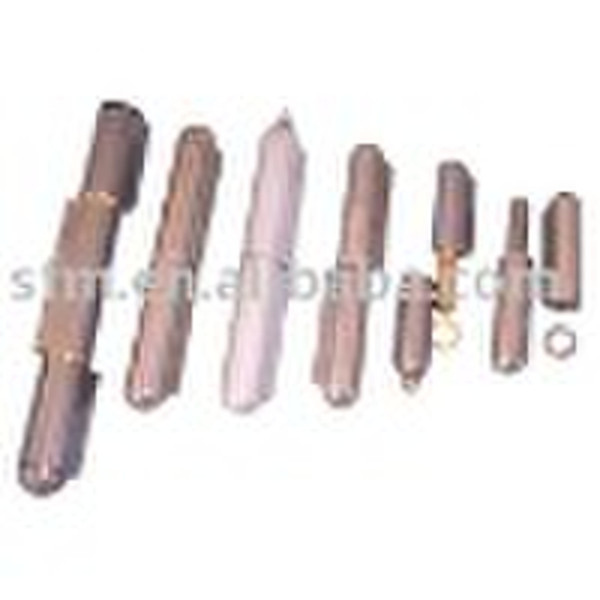

Weld On Hinge Hardware

Weld-On HingesWeld-On Hinges have specially designed leaves for welding installation. The Weld-On has the same function as a Slip Joint Hinge, but with a higher load rating and faster mounting. All weldable hinges come with a bushing between the two leaves for easier mobility, with optional grease fitting for easier lubrication. Mill finish is standard on this type of hinge. Note! Replacement parts are available if needed.Some typical applications: Truck Bodies, Refuse Containers, Agricultural Equipment, and Electronic Cabinets. Part NumberLength (L)Thickness (H)Diameter (B)L1L2Pin Diameter (D)FSP-0401.580.3800.3150.6300.5800.197FSP-0501.970.3800.3150.7900.5800.197FSP-0602.360.4600.3940.9300.7000.236FSP-0702.760.5100.4501.1300.8500.236FSP-0803.150.6100.5101.2900.8500.315FSP-1003.940.7700.6301.6301.2000.394FSP-1204.750.7700.6302.0401.3000.394FSP-1355.320.9000.7092.2501.5000.500FSP-1505.911.0000.7872.5401.6300.500FSP-1807.091.0000.7873.1501.9200.500FSP-2007.871.1300.9063.4402.0500.625FSP-26010.271.4601.1024.6002.8700.750
